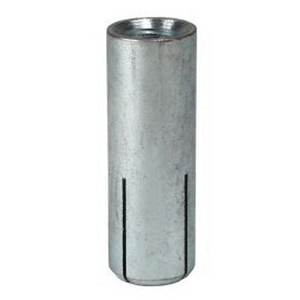

Simpson Strong-Tie Internally Threaded Drop-In Anchor, System of Measurement: SAE, Diameter: 3/4 in, Drill Size: 1 in, Thread Length: 1-1/4 in, Embedment Depth: 3-1/8 in, Length: 3-1/8 in, Thread Type: UNC, Material: Stainless Steel, Finish: Zinc Plated
| Diameter | : | 3/4 in |
| Drill Size | : | 1 in |
| Embedment Depth | : | 3-1/8 in |
| Finish | : | Zinc Plated |
| Item Name | : | Drop-In Anchor |
| Length | : | 3-1/8 in |
| Material | : | Stainless Steel |
| System of Measurement | : | SAE |
| Thread Length | : | 1-1/4 in |
| Thread Type | : | UNC |
| Type | : | Internally Threaded |
Drop-In anchors are internally threaded drop-in expansion anchors for use in flush-mount applications in solid base materials. Minimum thread engagement should be equal to the nominal diameter of the threaded insert.
- Lipped edge (DIAS) eliminates need for precisely drilled hole depth
- Hand- and power-setting tools available for fast, easy and economical installation
- Fixed-depth stop bit helps you drill to the correct depth every time
- Short length (DIAS) enables shallow embedment to help avoid drilling into rebar or pre-stressed/post-tensioned cables
- Short drop-in anchors include a setting tool compatible with the anchor to ensure consistent installation
Standards/Certifications: AISI 303, ASTM A582, A-A-55614, Type I FM 3017082, UL File EX3605
Applications: For Flush Mount Applications in Solid Base Materials
Catalog/Catalog Cut Sheet
